A document is a block editor and at the same time a model of the project. Text is written in it - headings, paragraphs, lists, tables, code, media - together with values computed from other models.

The content is recomputed every time the document is opened, and what you edit is the finished text.

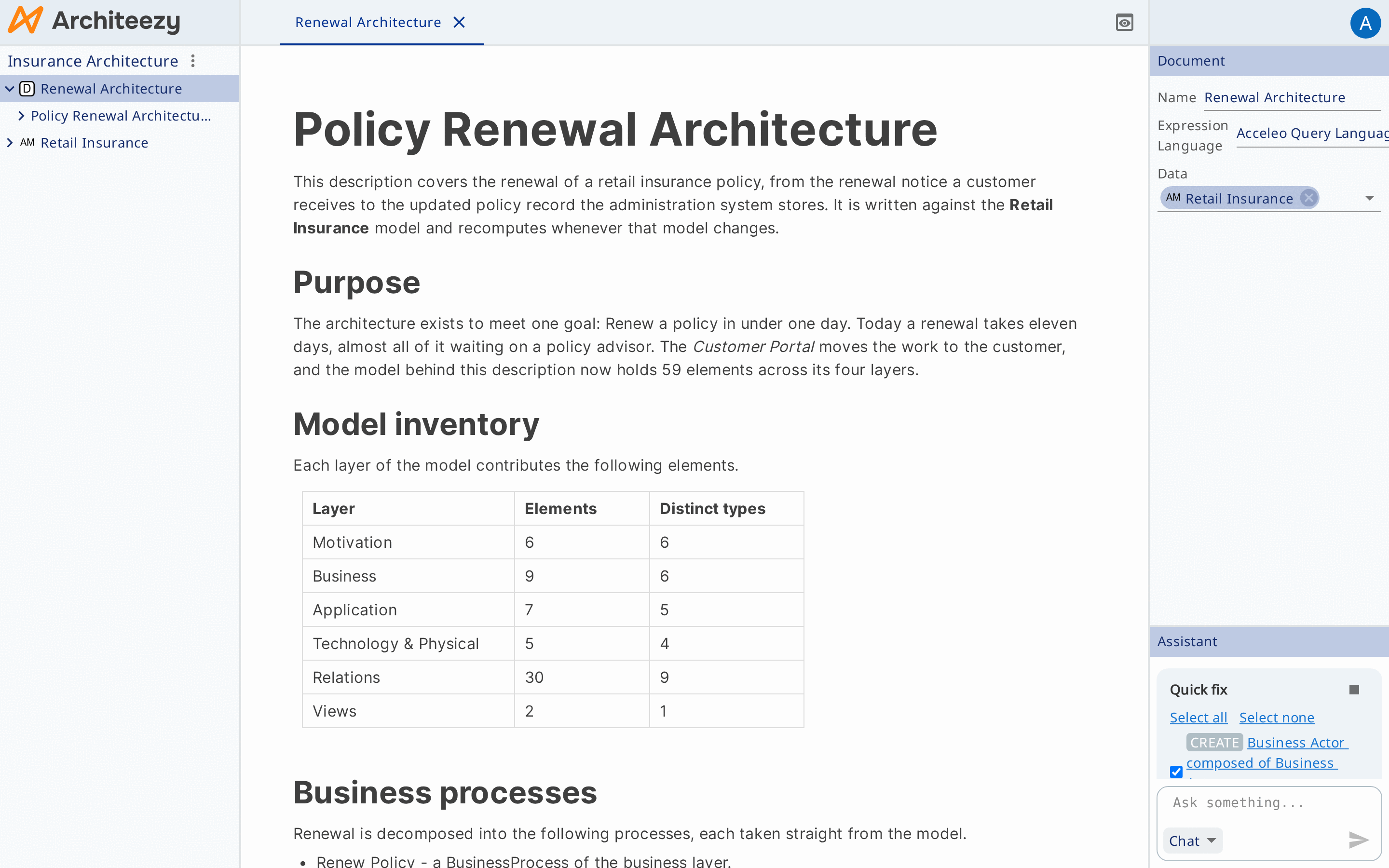

A document open in the editor: text and values read from the model

Creating a document​

  1. Open the project menu, choose New model, enter a Name, pick the Model type Document and click Create.
  2. Right-click the document in the model explorer, choose New representation, enter a name and click Create. The block editor opens.
  3. Select the document and add to Data in its form the model roots the document reads values from.

Expressions reach the bound roots through self.data. It is always a collection, even with one root. Roots from other models of the project may be bound as well.

The same form holds Expression language: AQL, OCL, SPARQL, CEL or EOL. One language applies to the whole document; if none is chosen, expressions are evaluated with AQL.

Fields​

A field is an inline fragment whose value is computed from the model.

  1. Type /, open the group Dynamic in the menu and choose Field.
  2. Enter an expression, self.data.elements->size() for example, and press Enter.

From then on the field shows the computed value. The expression is edited in Expression in the properties form.

A number, a string and a boolean are printed as they are, a model object as Label (EClassName), a collection element by element, an empty result as the placeholder …. If an expression fails, the field shows the error and the rest of the document is assembled as usual.

Fields only read the model. An expression that would change it is not executed.

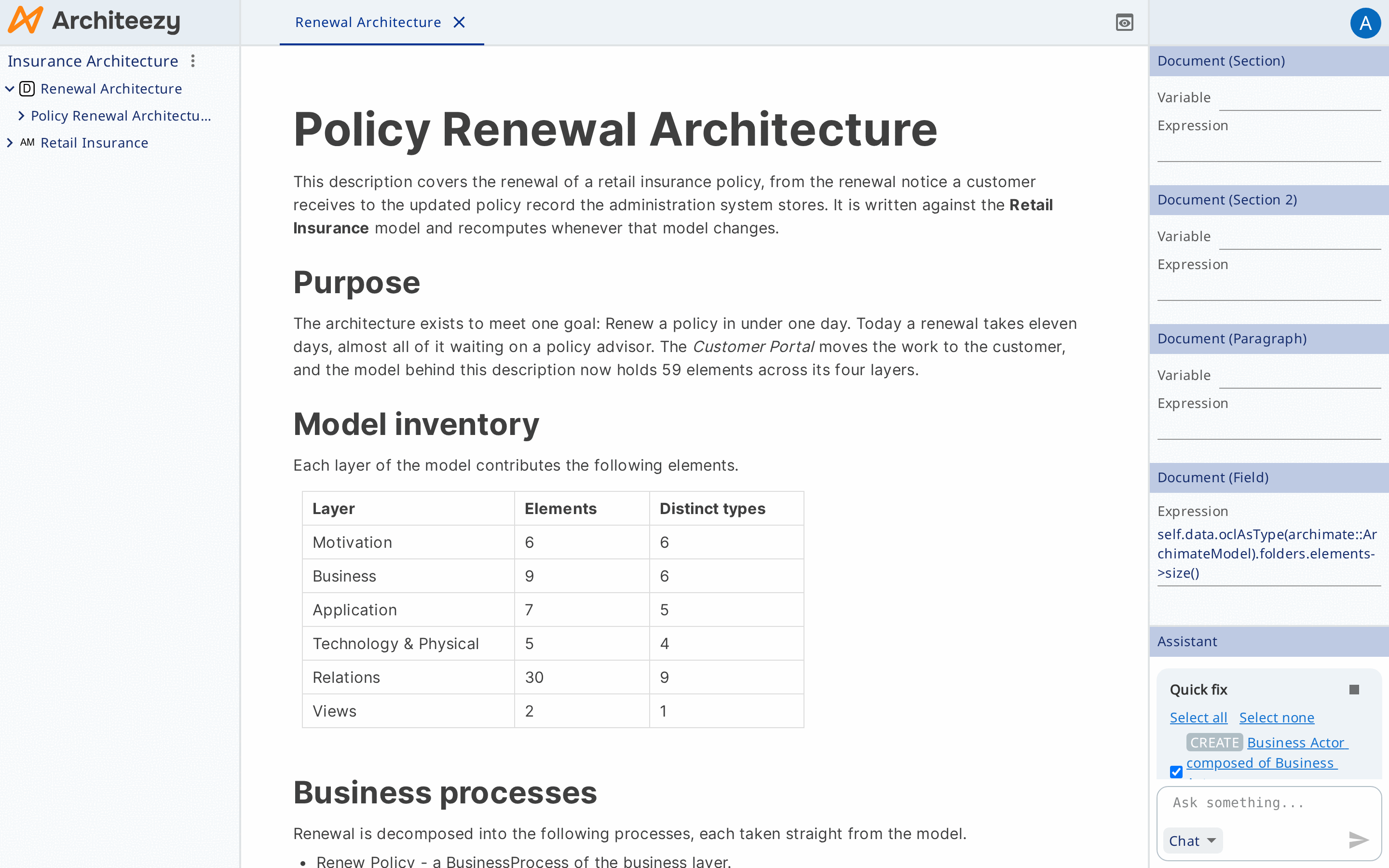

The expression behind a selected field, shown in the properties form

Repeated blocks​

Replication renders a block once per element of a collection.

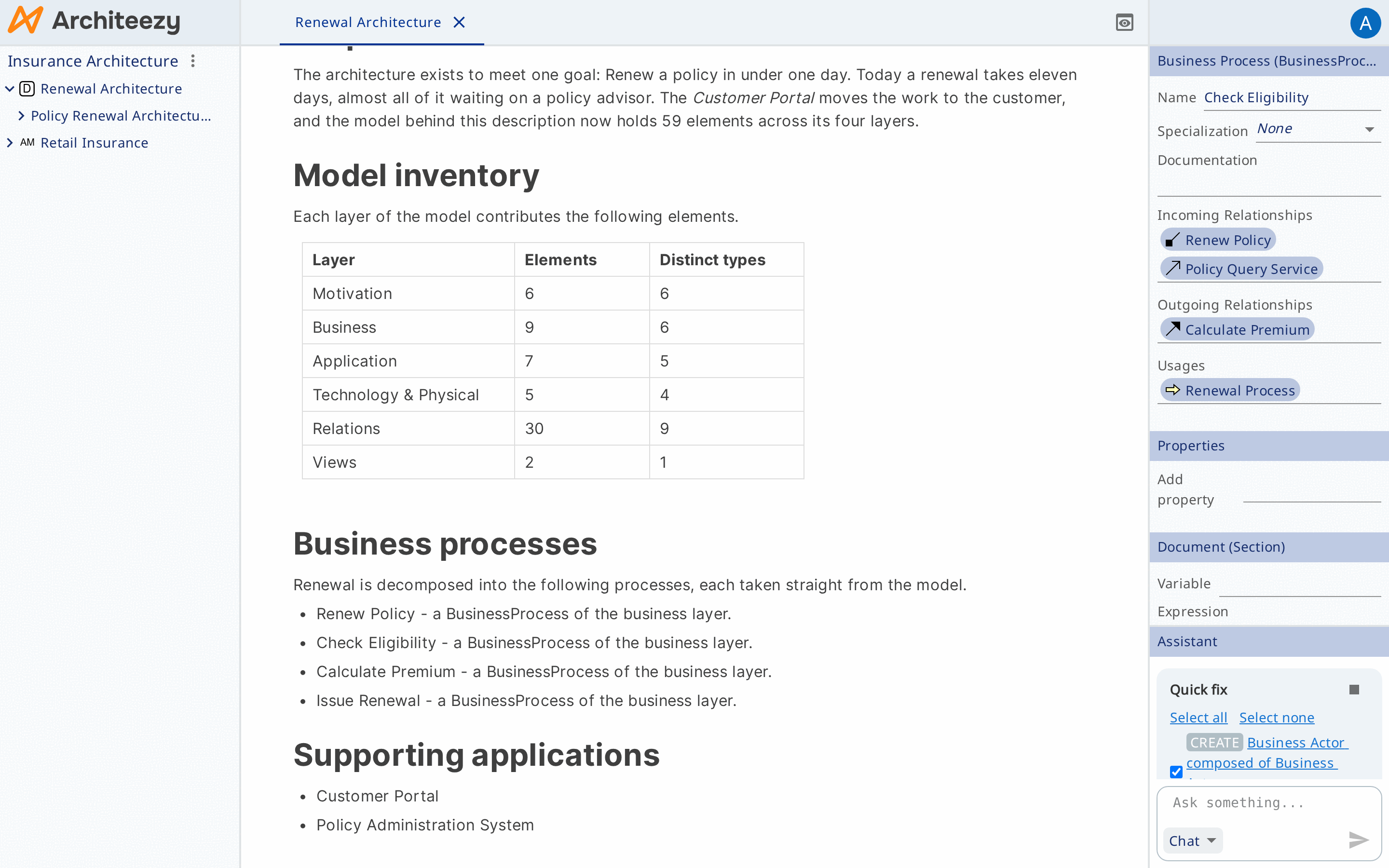

A replicated section rendered once per element of a collection

  1. Put the cursor in the block and fill in two fields in the properties form: Expression - the collection, self.data.elements for example - and Variable - the name each copy binds its element to, cls for example.
  2. Put a field with the expression cls.name into the block.

Paragraphs, list items, quotes, code blocks, tables, rows and cells replicate. A heading replicates together with its section, that is with every block down to the next heading of the same or a higher level. Separators, images, video, audio and files do not replicate.

Editing any copy changes the single original, after which the other copies are redrawn. Nested replicated blocks multiply the collections, and the inner copy sees both variables.

The number of copies comes from the collection: to get fewer copies, remove elements from the model. An empty collection gives one copy with the placeholder … in its fields.

Outline​

The model explorer builds an outline from the headings of the document, which makes moving around a long text easier.

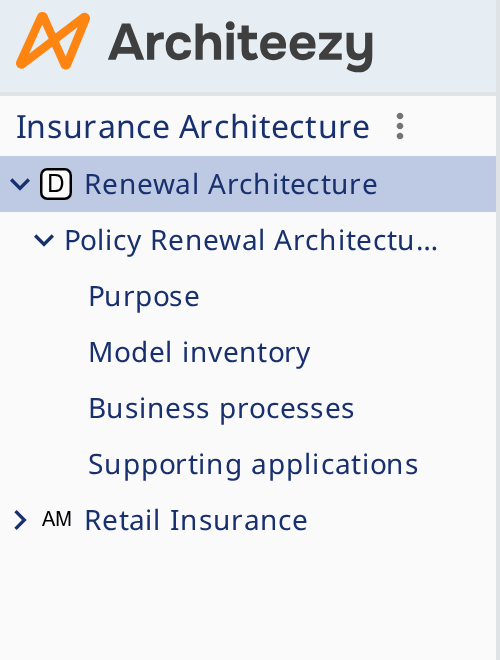

The outline of a document in the model explorer, built from its headings
