BPMN 2.0 is the OMG standard for business process models. A diagram shows more than the happy path: which department does the work, on what condition the process branches, how it can end, and what happens when a deadline passes or an answer never arrives. The standard fixes the notation, so the same diagram reads the same way to an analyst, to a developer and to another BPMN tool.

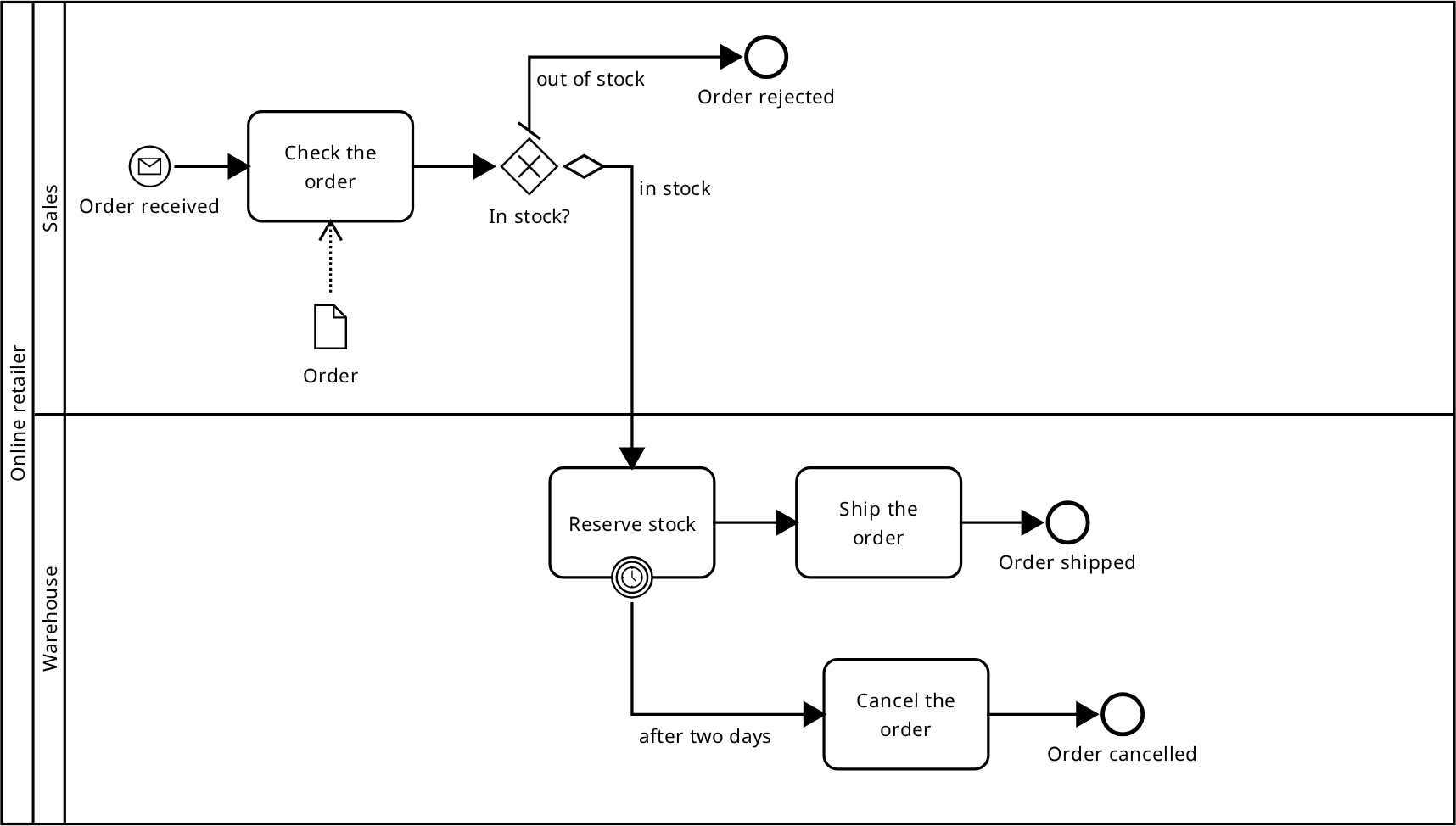

A BPMN process in a pool split into a Sales and a Warehouse lane: a message start event, a task reading a data object, an exclusive gateway with a default and a conditional branch, a flow crossing into the Warehouse lane, a timer on the border of an activity with its own path to a cancelling task, and three end events

Create the model​

Create the model Order Handling of the type BPMN 2.0 and open its diagram.

The path of an order​

  1. Create a Start Event Order received with the message trigger: what starts the process is neither a schedule nor an operator, but an order arriving from outside.
  2. Create a Task Check the order and draw a Sequence Flow from the event to the task.
  3. Create an Exclusive Gateway In stock? and draw a flow from the task to it. An exclusive gateway takes exactly one of its branches.
  4. Draw the branch out of stock to an End Event Order rejected and make it the default flow of the gateway.
  5. Draw the branch in stock to a Task Reserve stock and give it the condition stock available.
  6. Continue from Reserve stock to a Task Ship the order and to an End Event Order shipped.

The default flow is taken when no condition holds, so an order cannot get stuck at the gateway. If every branch is conditional, an execution in which none of them holds ends in an error; the editor warns about that.

The process has three end events, one per outcome: Order rejected, Order shipped and Order cancelled. A single "the end" event would not tell them apart.

Lanes​

Sales check the order, the warehouse reserves and ships it. Place a Pool Online retailer and split it into the lanes Sales and Warehouse. Move Reserve stock and Ship the order into the warehouse lane: a node belongs to the lane it sits in.

Lanes divide the work inside one organisation, pools divide it between several. A customer, a payment service or a carrier needs a pool of its own. Pools are connected by a message flow: a sequence flow does not cross a pool boundary.

When the warehouse is late​

What happens when the warehouse misses the deadline is described on the diagram too. Put a boundary event with the timer trigger on Reserve stock, draw a flow from it to a Task Cancel the order and on to an End Event Order cancelled.

A boundary event is either interrupting or non-interrupting. An interrupting one stops the activity: the reservation ends and the order is cancelled. A non-interrupting one leaves the activity running and starts the branch in parallel - that is how a reminder or an escalation is described.

Data​

Place a Data Object Order and draw a data association from it to Check the order - the check reads the order. An association the other way round, from the task to the object, means the task fills the order in.

A Data Object describes what lives inside a single process instance: the order itself, an application, a draft letter. A Data Store describes what outlives the process: a product catalogue, a customer database, an archive of shipments.

Change type​

The type of an element can be changed in two ways: select the node and pick the new type in the Change type section of its palette, or in the Type field of the properties form. A plain task becomes a user, service, send, receive, manual, script or business rule task; an exclusive gateway becomes an inclusive, parallel, event-based or complex one.

The name, the position and the connected flows are kept, so nothing has to be redrawn. The list holds close types only: a task cannot be made into a gateway or an event.

References in the properties form can be followed: from a flow to its source or its target, from a boundary event to the activity it is attached to, from a Call Activity to the process it calls. The element is selected on a diagram that shows it.

The model tree​

A diagram is opened by clicking the process or the collaboration drawn on it.

Messages, signals, errors and resources live in a Declarations folder rather than in a process: the same Order message can be caught by the start event in sales and sent by a task in the warehouse, so it is described once for the whole model and elements refer to it.

Validation​

The model is validated as you edit. Take the default flow away from the In stock? gateway, leaving both branches conditional, and a finding appears: "All outgoing flows of the diverging gateway are conditional, but no default flow is set: an execution in which no condition holds raises an exception".

Next to it is the fix "Set a default sequence flow". It shows what will change and is applied once you confirm.

Found in the same way are a node no start event can reach, a sequence flow drawn from one pool into another, a boundary event that is not attached to an activity, and an element the process starts at without a start event. Every finding names the clause of OMG BPMN 2.0 it rests on.

Exchange with other tools​

The model is stored in the same .bpmn that Camunda, bpmn.io and process engines work with. Upload model opens such a file, Download with the format BPMN saves the model back into one.

The layout survives the exchange: the size and the position of every shape and the bends of every line come back as they were, so the diagram does not have to be arranged again. A file saved without coordinates opens too - the editor arranges a diagram for it.
