SPARQL

This document was generated using AI assistance

Content may include inaccuracies, outdated information, or technical errors. Users are advised to cross-check critical information before implementation.

SPARQL queries a model as RDF. It is one of the two languages that can change a model: a query reads, and a SPARQL Update writes, so a SPARQL body can back a quick fix.

Writing an expression

A SPARQL expression is one complete SPARQL operation - a query or an update. It runs against the model that holds the contextual object, mapped to RDF, with that object bound to ?self.

A rule states a yes-or-no question about ?self:

ASK { ?self archimate:Nameable.name ?name . FILTER(STRLEN(STR(?name)) > 0) }

You do not write the PREFIX lines. The standard rdf, rdfs, owl and xsd prefixes are declared for you, and so is one prefix per metamodel in scope, taken from the metamodel's own prefix - archimate for ArchiMate. You can still declare your own; a declaration in the body wins.

Content assist proposes the variables already used in the body, the classes and properties of the metamodels in scope, and SPARQL keywords. After a variable in predicate position it offers properties first.

Query forms and what they return

Form	Result
ASK	a boolean
SELECT	one row per solution
CONSTRUCT	the triples the template produces
DESCRIBE	the triples describing the named resources

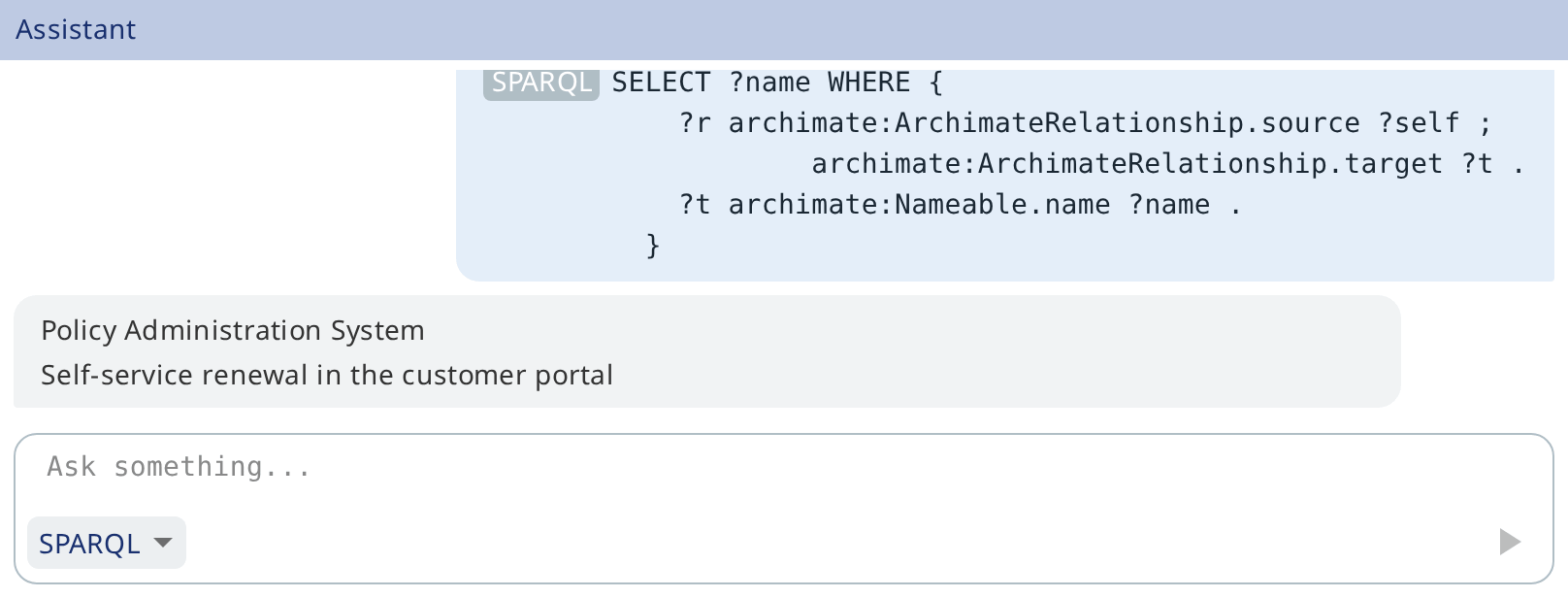

A SELECT that projects a single variable returns the values themselves, and a value that is an object IRI comes back as the object, so you can click through to it. A SELECT that projects several variables returns one line of name=value pairs per solution.

Where a rule requires a boolean, the body must be an ASK. A SELECT in that position is reported in the editor before it runs. Everywhere else any well-formed operation is accepted.

Variables in scope

?self is the object the expression is evaluated against, bound to its object IRI. Which object that is depends on where the expression runs - see The expression console.

In an update, ?g is bound in addition, to the graph holding the model. Every other variable in the body is a query variable that you bind yourself.

The RDF view of a model

An expression sees the model that holds ?self, and nothing else. Within it:

• an object is an IRI of the form urn:uuid:<id>;
• ?o a archimate:BusinessActor matches the concrete class of an object, and only that class - supertypes produce no triple, so a pattern for archimate:ArchimateElement matches nothing;
• a feature is addressed as prefix:DeclaringClass.feature, so the name of a business actor is archimate:Nameable.name and the ends of a relationship are archimate:ArchimateRelationship.source and archimate:ArchimateRelationship.target;
• an attribute is a literal holding the value in its string form, including numbers, booleans and enumeration literals, so compare with STR() and cast with xsd:integer() and friends when you need a number;
• a reference is a triple whose object is the IRI of the target, and containment is a reference like any other, so archimate:Folder.elements and archimate:FolderContainer.folders walk the model tree;
• only features that are set produce triples, and derived and transient features produce none - incomingRelationships and outgoingRelationships are transient, so reach a relationship through source and target instead;
• an inverse reference is a pattern with the variable in object position: ?subject ?property ?self finds everything pointing at ?self.

Models as RDF describes the mapping in full.

In a query the triples are in the default graph, so a query needs no GRAPH clause and a GRAPH clause matches nothing.

Changing a model

An update body describes the change a quick fix applies. The triples are in the graph bound to ?g, and that is the only graph read back afterwards, so every template and every pattern that touches the model goes inside GRAPH ?g:

DELETE { GRAPH ?g { ?self archimate:Nameable.name ?name } }
INSERT { GRAPH ?g { ?self archimate:Nameable.name ?trimmed } }
WHERE  { GRAPH ?g { ?self archimate:Nameable.name ?name }
         BIND(REPLACE(STR(?name), "^\\s+|\\s+$", "") AS ?trimmed) }

INSERT DATA and DELETE DATA take no variables at all, so ?self and ?g cannot appear in them. Write INSERT { GRAPH ?g { ... } } WHERE { ... } instead.

Several operations separated by ; run in order against the same graph, and ?self and ?g stay bound across all of them.

The difference between the graph before and after the update is applied to the model:

• adding or removing an attribute triple sets or unsets the attribute;
• adding or removing a reference triple links or unlinks two objects;
• adding an rdf:type triple whose subject is a fresh IRI creates an object of that class, and a containment reference to it attaches it to the model. BIND(UUID() AS ?new) mints the IRI. The class must be concrete;
• removing the containment reference triple that holds an object detaches it from the model.

An addition that points at an object which does not exist is reported as a warning and left unapplied.

What a modifying body produces is a set of individual changes. Whether they are written straight to the model or held for you to approve one by one is set by the apply mode. See the apply mode.

Examples

Reading, where ?self is an ArchiMate element.

The element carries a name:

ASK { ?self archimate:Nameable.name ?name . FILTER(STRLEN(STR(?name)) > 0) }

The element is connected to something:

ASK {
  { ?r archimate:ArchimateRelationship.source ?self }
  UNION
  { ?r archimate:ArchimateRelationship.target ?self }
}

The element carries an owner property exactly once:

ASK {
  { SELECT (COUNT(?p) AS ?owners) WHERE {
      ?self archimate:Properties.properties ?p .
      ?p archimate:Property.key "owner" .
  } }
  FILTER(?owners = 1)
}

A documented element must also be named:

ASK {
  FILTER NOT EXISTS {
    ?self archimate:Documentable.documentation ?doc .
    FILTER(STRLEN(STR(?doc)) > 0)
    FILTER NOT EXISTS { ?self archimate:Nameable.name ?name .
                        FILTER(STRLEN(STR(?name)) > 0) }
  }
}

Names follow a convention:

ASK {
  ?self archimate:Nameable.name ?name .
  FILTER(REGEX(STR(?name), "^[A-Z][A-Za-z ]*$"))
}

Everything this element realizes:

SELECT ?target WHERE {
  ?r a archimate:RealizationRelationship ;
     archimate:ArchimateRelationship.source ?self ;
     archimate:ArchimateRelationship.target ?target .
}

Everything that points at this element:

SELECT ?subject ?property WHERE { ?subject ?property ?self }

Everything reachable from this element by following relationships forwards:

SELECT DISTINCT ?reached WHERE {
  ?self (^archimate:ArchimateRelationship.source/archimate:ArchimateRelationship.target)+ ?reached
}

Elements filed in a folder that no relationship touches:

SELECT ?element WHERE {
  ?folder archimate:Folder.elements ?element .
  FILTER NOT EXISTS { ?r archimate:ArchimateRelationship.source ?element }
  FILTER NOT EXISTS { ?r archimate:ArchimateRelationship.target ?element }
}

How many objects of each class the model holds:

SELECT ?class (COUNT(?object) AS ?count) WHERE { ?object a ?class }
GROUP BY ?class
ORDER BY DESC(?count)

Modifying, where ?self is an ArchiMate element.

Give the element an owner property when it has none:

INSERT { GRAPH ?g { ?self archimate:Properties.properties ?new .
                    ?new a archimate:Property ;
                         archimate:Property.key "owner" ;
                         archimate:Property.value "unassigned" } }
WHERE  { BIND(UUID() AS ?new)
         FILTER NOT EXISTS { GRAPH ?g {
             ?self archimate:Properties.properties ?p .
             ?p archimate:Property.key "owner" } } }

Fill in a placeholder documentation when there is none:

INSERT { GRAPH ?g { ?self archimate:Documentable.documentation "To be documented" } }
WHERE  { FILTER NOT EXISTS { GRAPH ?g {
             ?self archimate:Documentable.documentation ?doc } } }

Detach the element and everything that refers to it:

DELETE WHERE { GRAPH ?g { ?self ?p ?o } } ;
DELETE WHERE { GRAPH ?g { ?s ?r ?self } }

SPARQL reference

The full SPARQL 1.1 Query and Update grammar is accepted, with the RDF-star triple terms of the query engine on top of it.

Query forms

Syntax	Returns	Meaning
SELECT ?a ?b WHERE { ... }	rows	the listed variables, one row per solution
SELECT * WHERE { ... }	rows	every variable used in the pattern
SELECT (expr AS ?v) WHERE { ... }	rows	a computed value under a new name
SELECT DISTINCT ...	rows	duplicate solutions removed
SELECT REDUCED ...	rows	duplicates may be removed
ASK { ... }	boolean	whether the pattern has at least one solution
CONSTRUCT { ... } WHERE { ... }	triples	the template, instantiated per solution
CONSTRUCT WHERE { ... }	triples	the pattern itself as the template
DESCRIBE ?v WHERE { ... }	triples	a description of each bound resource
DESCRIBE <iri>	triples	a description of a named resource

Update forms

Syntax	Meaning
INSERT DATA { GRAPH <g> { ... } }	add ground triples; no variables allowed, so ?self and ?g cannot be used
DELETE DATA { GRAPH <g> { ... } }	remove ground triples; no variables allowed
INSERT { ... } WHERE { ... }	add the template once per solution
DELETE { ... } WHERE { ... }	remove the template once per solution
DELETE { ... } INSERT { ... } WHERE { ... }	remove and add in one operation
DELETE WHERE { ... }	remove exactly what the pattern matched
WITH <g> DELETE { ... } INSERT { ... } WHERE { ... }	name the target graph once for the whole operation
USING <g>	build the graph the WHERE clause reads from
USING NAMED <g>	make a graph addressable through GRAPH in the WHERE clause
LOAD <url> / LOAD <url> INTO GRAPH <g>	read an RDF document from a URL into a graph
LOAD SILENT <url>	the same, without failing when the document cannot be read
CLEAR GRAPH <g> / CLEAR DEFAULT / CLEAR NAMED / CLEAR ALL	remove all triples from graphs
DROP GRAPH <g> / DROP DEFAULT / DROP NAMED / DROP ALL	remove graphs
CREATE GRAPH <g>	create an empty graph
ADD <g1> TO <g2>	copy the triples of one graph into another
COPY <g1> TO <g2>	replace the contents of a graph with another's
MOVE <g1> TO <g2>	as COPY, then drop the source
<op> ; <op>	run operations in sequence

CLEAR, DROP, CREATE, ADD, COPY and MOVE name graphs by IRI and accept ?g nowhere, so they cannot be aimed at the model's graph. Triples written anywhere other than ?g are discarded when the update finishes.

Prologue and dataset

Syntax	Meaning
PREFIX p: <namespace>	bind a CURIE prefix
BASE <iri>	set the base for relative IRIs
FROM <g>	build the default graph from the named graphs listed
FROM NAMED <g>	make a graph addressable through GRAPH

A query reads the model from the default graph, so a FROM or FROM NAMED clause selects a graph the query does not have.

Graph patterns

Syntax	Meaning
?s ?p ?o .	a triple pattern
?s ?p ?o1, ?o2 .	two objects for the same subject and predicate
?s ?p1 ?o1 ; ?p2 ?o2 .	two predicates for the same subject
?s a <Class>	shorthand for rdf:type
{ ... }	a group
GRAPH ?g { ... }	match inside a named graph
OPTIONAL { ... }	match if possible, leaving variables unbound otherwise
{ ... } UNION { ... }	solutions of either side
MINUS { ... }	drop solutions compatible with the right side
FILTER(expr)	keep solutions for which the expression is true
FILTER EXISTS { ... }	keep solutions for which the pattern matches
FILTER NOT EXISTS { ... }	keep solutions for which it does not
BIND(expr AS ?v)	bind a computed value
VALUES ?v { "a" "b" }	supply candidate values for one variable
VALUES (?a ?b) { ("x" 1) ("y" 2) }	supply rows of values for several variables
VALUES (?a ?b) { ("x" UNDEF) }	leave a variable of a row unbound
{ SELECT ... WHERE { ... } }	a subquery, evaluated first
SERVICE <endpoint> { ... }	delegate the pattern to a remote SPARQL endpoint
SERVICE SILENT <endpoint> { ... }	the same, ignoring a failure of the remote endpoint
[ ?p ?o ]	a blank node described inline
( ?a ?b )	an RDF collection

Property paths

Syntax	Meaning
iri	one step along a property
^iri	one step backwards - the inverse reference
p1/p2	a sequence of steps
p1|p2	either path
p*	zero or more steps
p+	one or more steps
p?	zero or one step
!iri	any property other than this one
!(p1|p2)	any property outside the set
(p)	grouping

This path walks the relationship graph forwards to any depth:

?self (^archimate:ArchimateRelationship.source/
       archimate:ArchimateRelationship.target)+ ?reached

Solution modifiers

Syntax	Meaning
ORDER BY ?v	sort ascending by a variable
ORDER BY ASC(expr), ORDER BY DESC(expr)	sort by a computed key
GROUP BY ?v	group solutions before aggregating
GROUP BY (expr AS ?v)	group by a computed key
HAVING(expr)	keep groups for which the expression is true
LIMIT n	at most n rows
OFFSET n	skip the first n rows

Operators

Highest precedence first.

Syntax	Returns	Meaning
!a, +a, -a	boolean, number	negation, sign
a * b, a / b	number	multiplication, division
a + b, a - b	number	addition, subtraction
a = b, a != b	boolean	value equality and inequality
a < b, a <= b, a > b, a >= b	boolean	ordering
a IN (x, y)	boolean	membership in a list
a NOT IN (x, y)	boolean	absence from a list
a && b	boolean	conjunction
a || b	boolean	disjunction

Literals and terms

Syntax	Meaning
<http://example.org/x>	an absolute IRI
prefix:local	a CURIE against a declared prefix
a	rdf:type
?v, $v	a variable
"text", 'text'	a string literal
"""text""", '''text'''	a string literal that may span lines
"text"@en	a literal with a language tag
"5"^^xsd:integer	a literal with an explicit datatype
42, -3	an integer literal
4.5	a decimal literal
1.0e6	a double literal
true, false	a boolean literal
_:b1	a named blank node
[]	an anonymous blank node
()	rdf:nil, the empty collection
# text	a comment to the end of the line
<<?s ?p ?o>>	a triple term

Term functions, testing and conversion

Syntax	Returns	Meaning
STR(term)	string	the lexical form of a literal or IRI
LANG(literal)	string	the language tag, empty when there is none
LANGMATCHES(tag, range)	boolean	whether a language tag matches a range
DATATYPE(literal)	IRI	the datatype of a literal
BOUND(?v)	boolean	whether the variable has a value
IRI(string), URI(string)	IRI	build an IRI from a string
BNODE(), BNODE(string)	blank node	a fresh blank node
UUID()	IRI	a fresh urn:uuid: IRI
STRUUID()	string	a fresh UUID as a string
isIRI(term), isURI(term)	boolean	whether the term is an IRI
isBLANK(term)	boolean	whether the term is a blank node
isLITERAL(term)	boolean	whether the term is a literal
isNUMERIC(term)	boolean	whether the term is a numeric literal
sameTerm(a, b)	boolean	term identity, stricter than =
IF(cond, a, b)	any	conditional value
COALESCE(a, b, ...)	any	the first argument that evaluates without error
STRDT(string, iri)	literal	a literal with the given datatype
STRLANG(string, tag)	literal	a literal with the given language tag
xsd:string(v)	literal	cast to a string
xsd:boolean(v)	literal	cast to a boolean
xsd:integer(v), xsd:decimal(v), xsd:double(v), xsd:float(v)	literal	cast to a number
xsd:long(v), xsd:int(v), xsd:short(v), xsd:byte(v)	literal	cast to a sized integer
xsd:unsignedLong(v), xsd:unsignedInt(v), xsd:unsignedShort(v), xsd:unsignedByte(v)	literal	cast to an unsigned integer
xsd:nonNegativeInteger(v), xsd:positiveInteger(v), xsd:nonPositiveInteger(v), xsd:negativeInteger(v)	literal	cast to a sign-constrained integer
xsd:date(v), xsd:dateTime(v)	literal	cast to a date or a date and time

String functions

Syntax	Returns	Meaning
STRLEN(s)	number	the number of characters
SUBSTR(s, start)	string	from a one-based position to the end
SUBSTR(s, start, length)	string	a fixed number of characters
UCASE(s), LCASE(s)	string	case conversion
STRSTARTS(s, prefix)	boolean	whether the string starts with the prefix
STRENDS(s, suffix)	boolean	whether the string ends with the suffix
CONTAINS(s, part)	boolean	whether the string contains the part
STRBEFORE(s, part)	string	what precedes the first occurrence
STRAFTER(s, part)	string	what follows the first occurrence
ENCODE_FOR_URI(s)	string	percent-encode for use in a URI
CONCAT(s1, s2, ...)	string	join the arguments
REGEX(s, pattern)	boolean	whether the pattern matches
REGEX(s, pattern, flags)	boolean	the same, with flags such as "i"
REPLACE(s, pattern, replacement)	string	replace every match
REPLACE(s, pattern, replacement, flags)	string	the same, with flags

STRAFTER(STR(?name), "-") returns what follows the first hyphen of a name.

Numeric functions

Syntax	Returns	Meaning
ABS(n)	number	absolute value
ROUND(n)	number	nearest integer
CEIL(n)	number	smallest integer not less than n
FLOOR(n)	number	largest integer not greater than n
RAND()	number	a double between 0 and 1

Date and time functions

Syntax	Returns	Meaning
NOW()	dateTime	the current date and time
YEAR(d), MONTH(d), DAY(d)	number	date components
HOURS(d), MINUTES(d), SECONDS(d)	number	time components
TIMEZONE(d)	duration	the timezone as a duration
TZ(d)	string	the timezone as it is written

Hash functions

Syntax	Returns	Meaning
MD5(s)	string	the MD5 digest as hexadecimal
SHA1(s)	string	the SHA-1 digest
SHA256(s)	string	the SHA-256 digest
SHA384(s)	string	the SHA-384 digest
SHA512(s)	string	the SHA-512 digest

Triple term functions

These have no keyword form. Each is called by its IRI, written with the rdf prefix that is already declared.

Syntax	Returns	Meaning
rdf:Statement(s, p, o)	triple term	build a triple term
rdf:isTriple(t)	boolean	whether the term is a triple term
rdf:subject(t)	term	the subject of a triple term
rdf:predicate(t)	IRI	the predicate of a triple term
rdf:object(t)	term	the object of a triple term

Aggregates

Syntax	Returns	Meaning
COUNT(?v)	number	the number of bound values
COUNT(*)	number	the number of solutions in the group
COUNT(DISTINCT ?v)	number	the number of distinct values
SUM(?v), AVG(?v)	number	total and mean
MIN(?v), MAX(?v)	any	smallest and largest value
SAMPLE(?v)	any	one value from the group
GROUP_CONCAT(?v)	string	the values joined by a space
GROUP_CONCAT(?v; SEPARATOR=", ")	string	the values joined by a given separator

DISTINCT may be written inside any aggregate, as in GROUP_CONCAT(DISTINCT ?name; SEPARATOR=", ").

Four further aggregates have no keyword form and are called by their IRI:

Syntax	Returns	Meaning
<http://rdf4j.org/aggregate#stdev>(?v)	number	sample standard deviation
<http://rdf4j.org/aggregate#stdev_population>(?v)	number	population standard deviation
<http://rdf4j.org/aggregate#variance>(?v)	number	sample variance
<http://rdf4j.org/aggregate#variance_population>(?v)	number	population variance

Further reading

• SPARQL 1.1 Query Language
• SPARQL 1.1 Update
