Pull changes from the repository

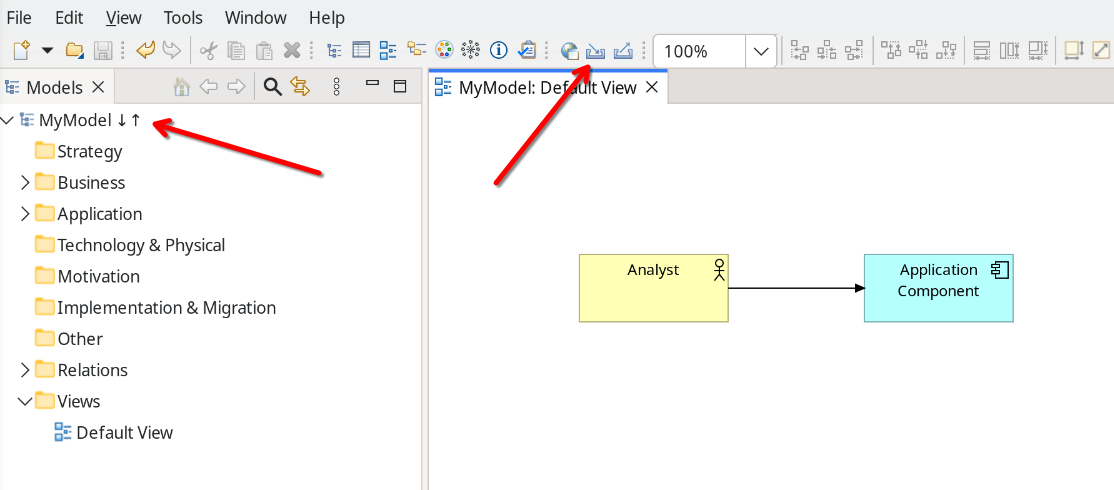

Archi periodically checks for model updates on the server and marks them with a small arrow next to the model name. To fetch these changes, click Pull on the tool palette:

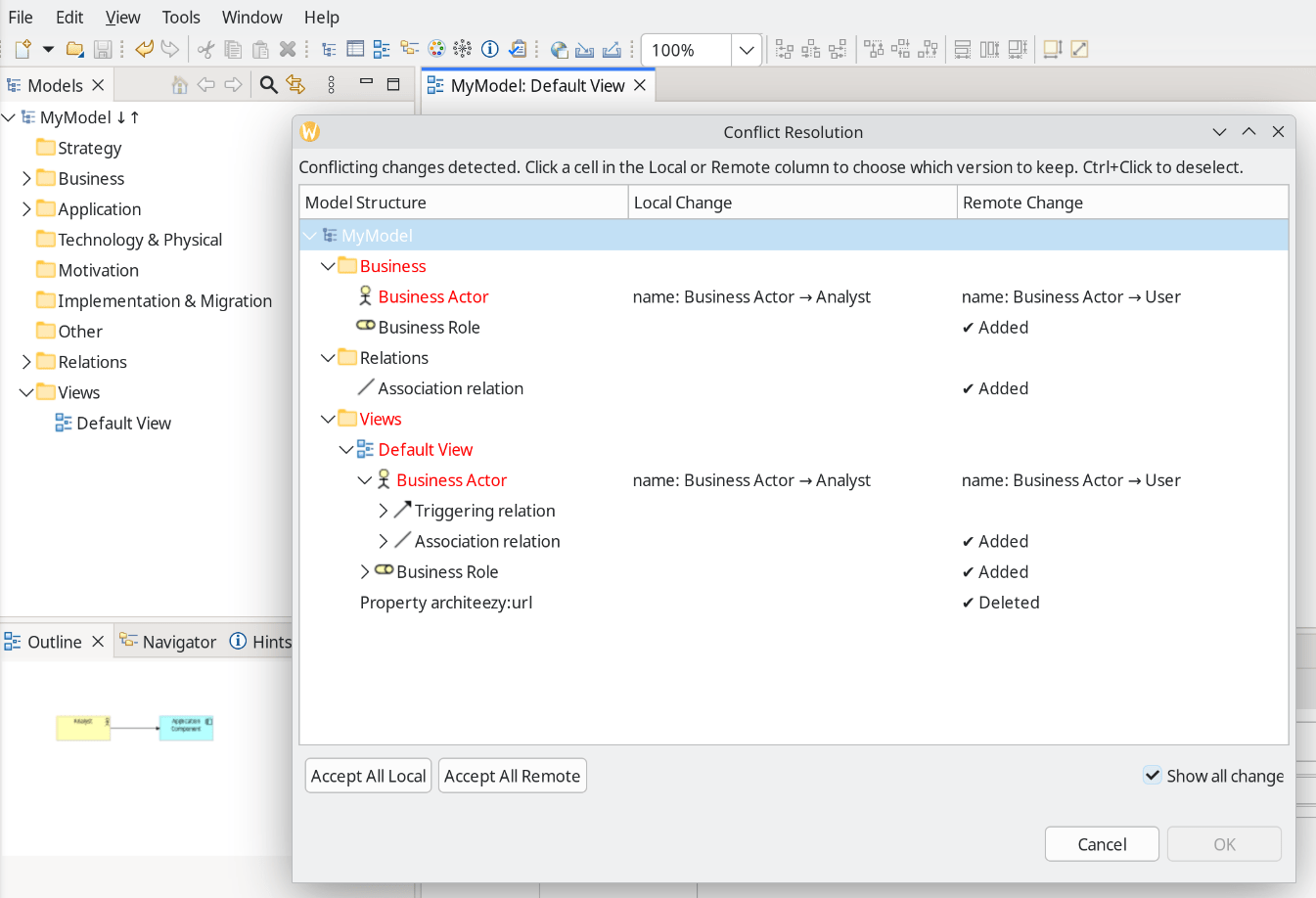

Archi saves the local model and compares it with the remote one. If there are no conflicts, the local model is updated silently. If the same objects were edited both locally and remotely, Archi shows the conflict resolution dialog:

In this example, Business Actor was renamed to Analyst locally and to User remotely. Such a conflict cannot be resolved automatically, so you need to choose which change to apply.

This dialog also lets you review all changes, not just the conflicting ones. For example, you can see that Business Role and Association were added to the repository.
